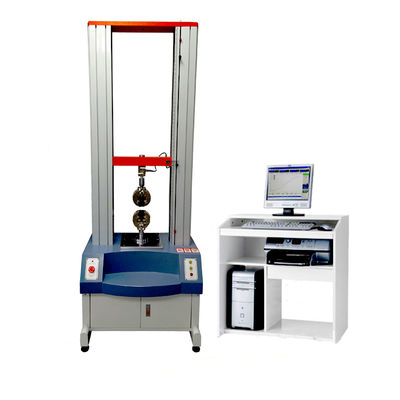

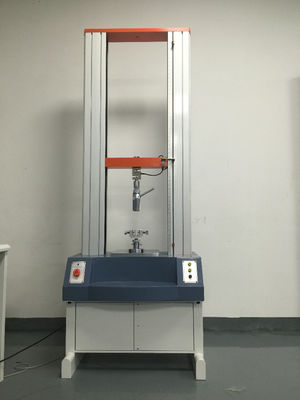

Used Universal Tensile Strength Testing Machine
Product Overview
This advanced material testing machine combines electronic technology with mechanical transmission, offering precise load speed control and accurate force measurement. It features high sensitivity for load and displacement measurement, capable of constant-velocity loading and displacement testing. Ideal for quality control in production lines, this machine is designed for testing non-metallic and metallic materials with loads less than 1 ton.
Key Features
- Photoelectric encoder for precise displacement measurement
- Embedded microcontroller with multifunctional software for measurement, control, calculation, and storage
- Automatic calculation of stress, elongation rate, tensile strength, and elastic modulus

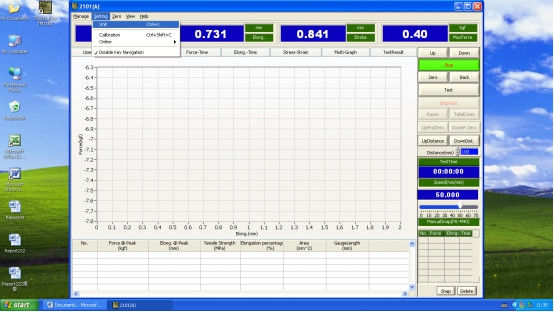

- Computer display of dynamic testing curves and comprehensive data processing
- Post-test data reanalysis and report generation capabilities
Primary Applications
Designed for testing flexible materials with large deformation, including rubber, plastics, and leather. Capable of performing tensile, tear, adhesive strength, and peel tests. Equipped with specialized extensometers for measuring large material deformations.
Industry Applications
Widely used across multiple industries including quality control, rubber & plastics, metallurgy, manufacturing, electronics, automotive, textiles, packaging, food, medical equipment, research institutions, and technical supervision departments.
Technical Specifications
| Parameter |
Specification |
| Max Load |
5KN, 1ton, 2 ton |
| Accuracy Grade |
1% / 0.5% |
| Effective Measuring Range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Testing Speed Range |
0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Effective Testing Width |
390mm (customizable) |
| Tensile Stroke |
800mm, 1000mm, 1200mm (customizable) |
| Power Supply |
220V, 50HZ, 0.4kw |
| Machine Dimensions |
80×55×220cm (L×W×H) |
| Weight |
250kg |
Frequently Asked Questions
How to choose the most suitable Mechanical Equipment?
Our professional team will provide recommendations based on your specific testing requirements and specifications.
What's the delivery term?
Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Do you accept customization service?
Yes, we offer both standard and customized machines tailored to your specific needs.
What is your warranty policy?
We provide a 2-year warranty including technical support and parts replacement when necessary.
About Our Company
Zhongli Instrument Technology Co., Ltd, headquartered in Dongguan, Guangdong, China, has been specializing in manufacturing lab testing equipment since 2007. Our products are exported to over 80 countries worldwide, with particular popularity in European and American markets.
