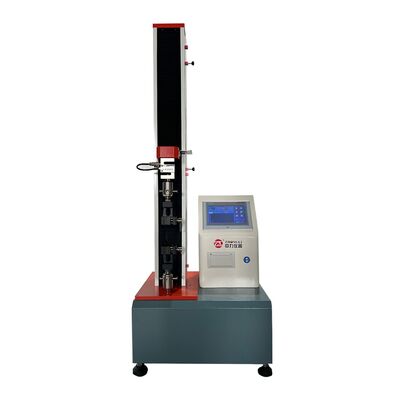

Mini Tensile Testing Machine | ASTM Standard for Small Specimens | Digital Material Strength Tester
Main Functions
The Automatic Universal Tensile Testing Machine performs tensile, compression, bending, shear, peel, tear, and two-point extended tests (with extensometer) for quality control. It's suitable for testing various materials including textiles, rubber, plastics, synthetic leather, tape, adhesives, plastic film, composites, electronics, and metals.
Corresponding Standard
Complies with GB/T16491-1996 electronic universal testing machine standards.
Applicable Industries
Widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, auto parts, textiles, leather, footwear, rubber and plastic products, universities, research labs, and quality inspection departments.
Technical Parameters
| Model |
Desktop Computer Automatic Universal Tensile Tester |
| Maximum load |
1KN high-precision sensors from U.S.A. |
| Capacity choice |
200N, 500N, 1KN or less than can be self-selected |
| Unit |
KG,N,LB, TON |
| Measurement system |
Load cell + HZ-2000 |
| Accuracy load of measurement |
± 0.5% (full range of 5% -100%) |
| Resolution |
1 / 50000 |
| Maximum test stroke |
About 500mm (customizable) |
| Test speed |
50-300mm/min with stepless speed and 5 fixed-speed (customizable) |
| Data sampling frequency |
200times/sec |
- Machine with thermal printers can automatically output testing results
- Can store 10 testing results and auto-calculate averages
- ZL-2000 dark blue LCD display with membrane touch keys
- Machine size: 45x58x135cm (LxWxH)
- Weight: 75KG
- Breakpoint ratio adjustable from 0-99%
- Safety shutdown for overload or over-trip conditions
- Aluminum column shell construction
- AC Motor power system (120W)
- Power supply: 1Φ, 220V, 15A
Equipment Summary

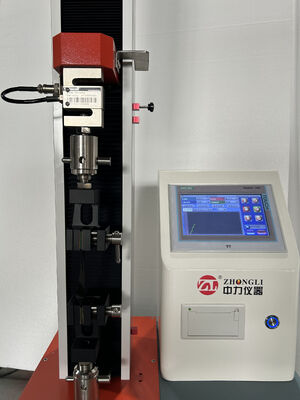

This simple, easy-to-operate machine features electronic control systems and load sensors for tension/compression testing via motor-driven T-screws. Ideal for production line quality control, it's designed for testing non-metallic and metallic materials with loads under 1KN.
Main Features
- Premium aluminum construction with electrostatic spray finish
- Digital force display with LCD screen
- Multiple unit options (N, Kg, Lb, ton) with automatic conversion
- Backlit LCD for low-light environments
- Records maximum tension/compression forces with auto/manual zeroing
- Overload protection system
- Single-column design for compact operation
- 24-bit AD acquisition with 1/200000 resolution
- Password protection for operator security
- Customizable breakpoint settings (0-99%)
Fixture Accessories Customization
About Us
Zhongli Instrument Technology Co., Ltd, headquartered in Dongguan, China since 2007, specializes in manufacturing lab testing equipment. Our products are exported to over 110 countries, particularly favored in European and American markets. We serve industries including rubber/plastics, food, packaging, and electronics, with capabilities for custom machine development.
FAQ
How to choose suitable mechanical equipment?
Our team provides recommendations based on your testing requirements and specifications.
What's the delivery term?
Typically 15-20 working days after deposit, with stock availability for some models.
Do you accept customization?
Yes, we offer both standard and customized machines to meet specific requirements.
Can we visit your factory?
We welcome visits and can assist with accommodations and transportation.
What's your warranty policy?
Two-year warranty with technical support and potential on-site service.
